CP216 143-216-000-031

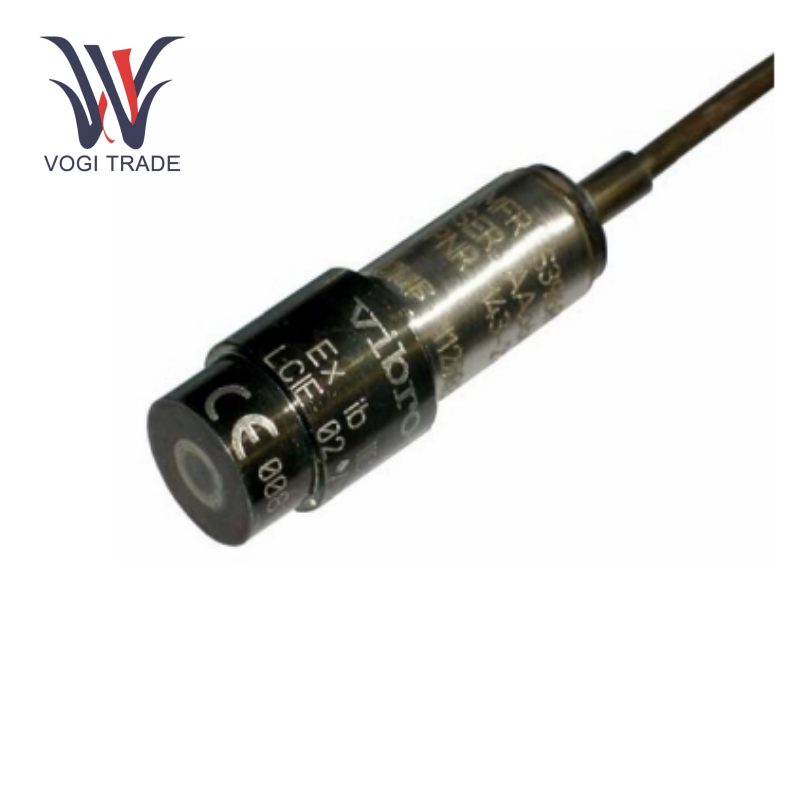

VIBRO-METER CP216 143-216-000-031 Piezoelectric Pressure Sensor: Expert in Dynamic Pressure Monitoring in Extreme Environments

Key Technical Features

Excellent stability: Artificial piezoelectric materials ensure long-term accuracy without the need for repeated calibration.

Dynamic range: 0.0005~250 bar (random), peak overload 350 bar

Frequency response range: 2~15,000 Hz (±5%), resonant frequency＞80 kHz

Interference immunity: MEGGITT CP216 143-216-000-031 acceleration sensitivity ≤0.0025 bar/g

Explosion-proof certification: ATEX II 2G Exib IIC T6-T530 (Zone 1/2)

Radiation protection: Withstands 10¹⁰ erg/g gamma flux & 10¹⁷ n/cm² neutron flux

Corrosion-resistant seal: Nimonic 90 shell + Inconel 600 cable

Smart configuration options

Dual connection solution:

Standard Lemo connector (standard environment)

Optional high temperature connector (>470°C working conditions)

Modular cable: CP216 supports 0.5m~3m custom length (mineral insulated coaxial cable)

Quick installation kit: 143-216-000-031 provides MA104/126 adapter and pressure seal assembly

Application scenarios

Engine combustion monitoring, turbomachinery testing, explosion impact research and other fields that require high-precision dynamic pressure acquisition, especially for extreme environments with high temperature, radiation or explosion risks.

For more details, please click the CP216 DATASHEET link below to obtain the CP216 143-216-000-031 DATASHEET
