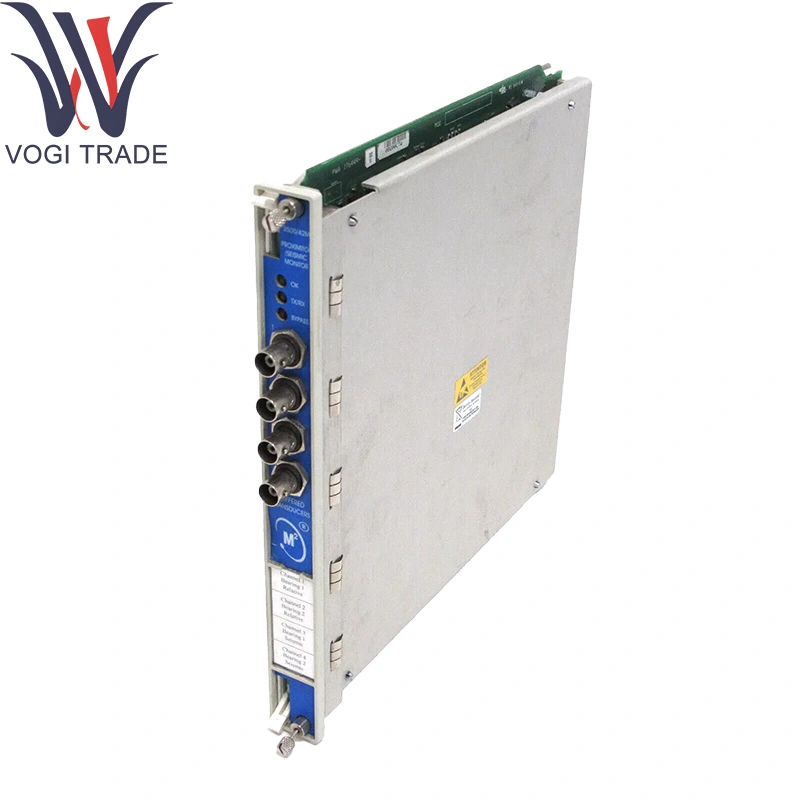

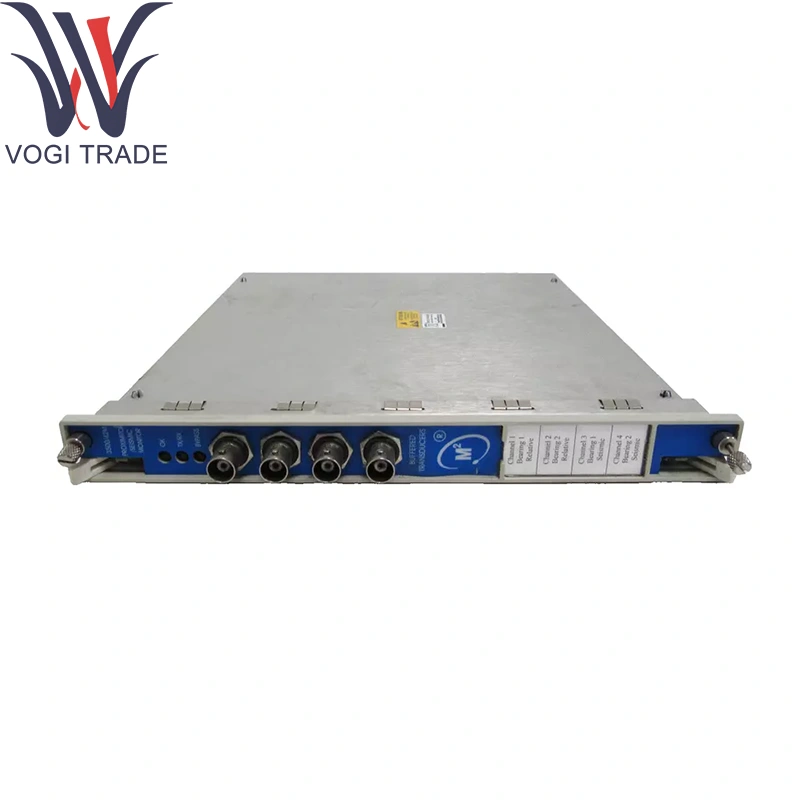

Бренд: Блин, НевадаОписание: 176449-02Состояние: совершенно новыйСертификат: Письмо отчета о тестировании COOГарантия: 1 годИнвентарь QTY: 13Платеж: T/T.Справочный порт: ШэньчжэньBentny Nevada 176449-02, установленные в бухтах стойки 3500 серии для состояния и оцифровывают сигналы структурной вибрации от акселерометров сейсмического класса.
|
Manufacture |
Bently Nevada |
|
Model Number |
3500/42M |
|
Ordering Number |
176449-02 |
|
Catalog |
3500 SYSTEM |
|
Description |
Proximitor Seismic Monitor |
|
Country Of Origin |
USA |
|
HS CODE |
85389091 |
|
Dimension |
24*2.4*10 (CM) |
|
Weight |
1.6 kg |
Ordering Information
Part Number: 176449 02
Description: Seismic (vibration) monitor module for 3500 Series rack
Series: 3500/3700 Proximitor® Seismic I/O
Spare/Accessory: Ribbon cable harness (106765 13), front panel overlay (3500/65 FP OVR)
Technical Parameters
Channels: 4 seismic/vibration inputs for Bently Nevada 176449-02
Input Types:
IEPE accelerometers (4 mA constant-current)
±10 V passive accelerometers (jumper-selectable)
Bandwidth: 0.5 Hz to 5 kHz (field-selectable low-pass filters at 1, 2, or 5 kHz)
Resolution: 24-bit ΔΣ ADC per channel in Bently Nevada 176449-02
Sampling Rate: 2 kHz per channel, simultaneous acquisition
Sensitivity Settings: Programmable gain (×1, ×2, ×5, ×10)
Isolation: ≥ 1 kV channel-to-chassis
Signal Conditioning:
Overvoltage clamp to ± 35 V
Reverse-polarity protection
Power Consumption: 24 V DC (18–32 V DC) via backplane, ≤ 5 W
Environmental Ratings:
Operating Temp: 0 °C to +70 °C
Storage Temp: –40 °C to +85 °C
Humidity: up to 95 % RH, non-condensing
Product function
Seismic-Grade Signal Conditioning: Provides stable excitation via Bently Nevada 176449-02 for IEPE sensors or voltage pass-through.
High-Resolution Digitization: Converts analog vibration signals into time-stamped digital data.
Diagnostic Monitoring: Reports sensor health to the rack’s system interface.
Data Streaming: Broadcasts real-time vibration data over the 3500 bus using Bently Nevada 176449-02.
Application Areas
Turbine & Generator Foundations: Monitoring structural vibration with Bently Nevada 176449-02 to detect resonance.
Compressor Skids & Pumps: Tracking frame vibration to preempt failures.
Heat-Exchanger Tubesheets: Detecting fluid-induced vibration.
Marine & Offshore Platforms: Structural-health monitoring in environments requiring Bently Nevada 176449-02.
OEM Machinery Skids: Embedding seismic monitoring in packaged equipment using Bently Nevada 176449-02.
