Блинт Невада 21747-080-00

Ordering Information

Part Number: 21747-080-00

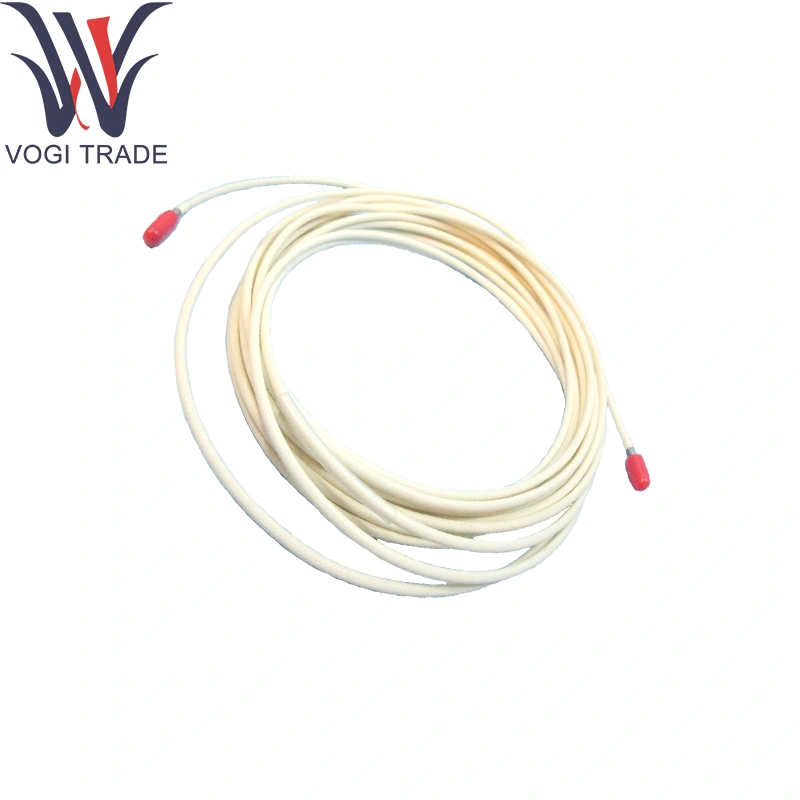

Description: Proximity-probe extension cable for 3300/3500/3700 Series monitor modules

Length Code (“080”): 8.0 m (± 0.05 m)

Connector A: 10-pin mini-DIN (probe end)

Connector B: 10-pin mini-DIN (Proximitor®/monitor-module end)

Jacket Material: PVC (standard)

Shielding: Braided tinned-copper ≥ 95 % coverage with drain-wire

Technical Parameters

Characteristic Impedance: 50 Ω ± 5 % for Bently Nevada 21747-080-00

Capacitance: ≤ 100 pF/m between conductors

Conductor: 26 AWG, 7 × 36 tinned-copper strands per core

Voltage Rating: 300 VAC max (insulation)

Temperature Rating: –20 °C to +80 °C (PVC jacket) on Bently Nevada 21747-080-00

Environmental Compliance: RoHS-compliant; UL-recognized cable

Product function

Bently Nevada 21747-080-00 maintains the integrity of the proximity-probe's high-frequency AC signal by providing a low-loss, impedance-matched extension between the probe and its conditioning or monitor module. The robust shielding in Bently Nevada 21747-080-00 and controlled impedance minimize signal attenuation and noise, supporting accurate real-time measurement of shaft clearance and vibration over extended distances.

Application Areas

Power-Generation Turbines & Compressors: Extending probe connections across large plant footprints using Bently Nevada 21747-080-00

Industrial Pumps & Motors: Remote probe mounting in skid and panel installations

Portable Test & Calibration Rigs: Quick-disconnect harnesses for field diagnostics

OEM Skid Packages: Factory-installed long-cable assemblies featuring Bently Nevada 21747-080-00

Control-Room Enclosures: Neat, shielded cabling from machinery floor to remote rack rooms
